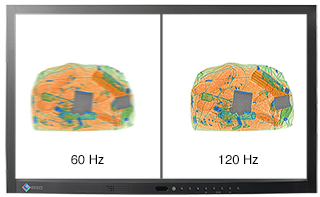

With a refresh rate of 120 Hz and the active color TFT LCD, the monitor is ideal for screening baggage or freight and cargo in security environments without needing to constantly stop and start conveyors. 120 Hz capability significantly decreases ghosting and allows moving pictures displayed on the screen to be examined much more clearly and efficiently without blurring. |
 |
Full High-Definition Display
Full HD 1920 × 1080 resolution and a palette of 16.77 million colors create a clear and vivid display needed for precise observation.
PC and Video Inputs
The monitor comes with an HDMI interface, DVI-I (RGB analog +TMDS) and additional analog 15 pin HD D-Sub input for connection to a computer. It also includes a CVBS composite (BNC) input for connecting to video surveillance or scanning equipment.
NTSC/PAL/SECAM Support
The monitor supports NTSC, PAL, and SECAM signals and can connect to a variety of different security and surveillance equipment.
High Brightness Display
With a maximum brightness of 350 cd/m2 and a contrast ratio of 1000:1, the screen has high visibility even in bright ambient environments.
Multiple Resolution Support and Image Scaling
The monitor supports multiple resolutions up to its native resolution of 1920 × 1080. Non-native resolutions can be displayed in their actual size, scaled proportionately, or expanded to fill the screen. This is helpful when receiving other non-native resolutions during set-up or with other applications.
| Model Variations | Without Stand |
|---|---|
| Cabinet Color | Black |
| Panel | |
| Type | TN |
| Size | 23" / 58 cm (584 mm diagonal) |
| Native Resolution | 1920 x 1080 (16: 9 aspect ratio) |
| Display Size (H x V) | 509.2 x 286.4 mm |
| Pixel Pitch | 0.2652 x 0.2652 mm |
| Display Colors | 16.7 million |
| Viewing Angles (H / V, typical) | 170°, 160° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 3 ms (Gray to Gray) |
| Video Signals | |
| Input Terminals | DVI-I 29 pin x 1, HDMI x 1, HD-D 15 pin x 1, BNC x 1, RS232 x 1 |
| Digital Scanning Frequency (H / V) | 25 - 165 MHz |
| Analog Scanning Frequency (H / V) | 15 - 100 kHz / 50 - 100 Hz |
| Video Input Format | SC, PAL, SECAM |
| Power | |
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 50 W |
| Power Save Mode | Less than 4 W |
| Standby Mode | Less than 0.1 W |
| Power Management | VESA DPMS |
| Features & Functions | |
| OSD Languages | English, German |
| Others | Brightness, Contrast, Phase, Frequency, Sharpness, Color temperature, Image size, Backlight, DPMS, OSD Setting (Transparency, OSD Timeout), Gamma table, Source scan, Factory reset, Testpattern, Demo Mode, Infomation |
| Physical Specifications | |
| Dimensions (Without Stand, W x H x D) | 547 x 332 x 73 mm |
| Net Weight (Without Stand) | 5.8 kg / 12.8 lbs |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Temperature | 0 - 35 °C |
| Humidity (R.H., non condensing) | 20 - 80 % |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CE, FCC, UL |
| Warranty | Two years |
